Mechanical
Mechanical injectors usually have individual high pressure metal lines from pump to injector and no electrical connector.
NW Fuel Services
Injector Testing and Rebuilding
Diesel and gasoline injector testing prices for mechanical, common rail, HEUI, EUI, Cummins STC, pumpeduse, top feed, side feed, and GDI injectors.
Quote Request Sent
Thank you. Our team will review your service request, then respond by email or call you.
Why This Service
- Clear injector testing prices by injector style
- Bosch EPS205 computerized testing for common rail injectors
- Results and recommendations provided after testing
- Replace only what needs fixing to help save money
Overview
Service Overview
NW Fuel Injection Services provides injector testing and rebuilding support for diesel and gasoline applications in Surrey, BC. Our technicians test mechanical injectors, common rail injectors, HEUI injectors, EUI injectors, Cummins STC injectors, pumpeduse injectors, top feed gasoline injectors, side feed gasoline injectors, and GDI injectors, then provide results and recommendations so you can make a clear repair decision.
Diesel Injector Testing
Mechanical Common Rail HEUI And EUI
This page brings the core injector testing prices into one place. Diesel injector testing includes mechanical injectors, common rail injectors, common rail industrial injectors, HEUI injectors, EUI injectors, Cummins STC injectors, and Volkswagen or Audi pumpeduse unit injectors. After testing, NW Fuel reviews the results and provides recommendations before repair or replacement decisions are made.
- Mechanical injector testing for many diesel engines built before 2000
- Common rail testing for Duramax, Dodge Cummins, Ford, and many other applications
- HEUI testing for Ford Powerstroke, Navistar, and CAT applications
- EUI testing for two pin, four pin, Cummins STC, and related unit injectors
- Results and recommendations provided after testing

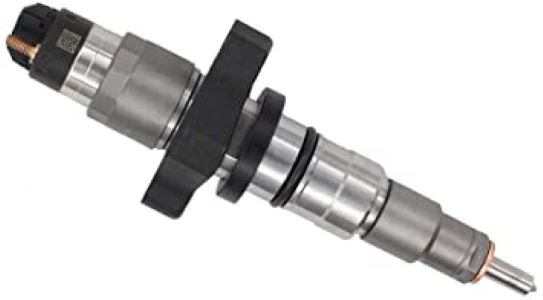

Common Rail Testing
Bosch EPS205 Computerized Test Bench
Common rail injectors have a high pressure steel line from a rail and an electrical connection. NW Fuel tests many Bosch, Denso, and Delphi common rail injectors on the Bosch EPS205 computerized test bench. A PDF printout from the test bench is provided where applicable, and our team discusses the results and recommendations after testing.
- Common rail light duty injector testing
- Common rail industrial injector testing
- Bosch, Denso, and Delphi common rail injector coverage
- PDF test bench printout provided where applicable
- Recommendations explained after test results are reviewed
Gasoline Injector Testing
Top Feed Side Feed And GDI
Gasoline injector testing and cleaning pricing includes top feed, side feed, and gasoline direct injection injectors. Testing helps confirm flow, spray pattern, and injector operation before and after ultrasonic cleaning, with parts such as gaskets or seals added only when needed.
- Top feed gasoline injector testing and cleaning
- Side feed gasoline injector testing and cleaning
- GDI gasoline injector testing and cleaning
- 48 hour standard turnaround for listed gasoline injector services
- Additional parts generally priced separately when needed
Service Fit
Injectors We Service
Common Rail
Common rail injectors use a high pressure line from a rail and an electrical connection, often from Bosch, Denso, or Delphi.
HEUI And EUI
HEUI and EUI testing covers Ford Powerstroke, Navistar, CAT, Cummins STC, two pin, four pin, and other unit injector styles.
Gasoline
Gasoline injector testing and cleaning covers top feed, side feed, and GDI injectors with before and after results.
Benefits
Why Choose This Service
- Clear injector testing prices by injector style
- Bosch EPS205 computerized testing for common rail injectors
- Results and recommendations provided after testing
- Replace only what needs fixing to help save money
- 12-month unlimited km warranty on all service work
- Diesel and gasoline injector testing in one Surrey shop
Pricing
Service Pricing
| Style | Price | Turnaround | Notes |
|---|---|---|---|
| Mechanical Injectors | $16 | 48 hrs | Almost every diesel built before 2000, many smaller engines built after 2000, individual high pressure metal lines, no electrical connectors. Rebuild is generally quoted after testing. |
| Common Rail | $65 | 48 hrs | High pressure steel line from a rail and an electrical connection. Includes Duramax, Dodge Cummins after 2003, Ford after 2008, and many others. PDF printout and recommendations provided. |
| Common Rail Industrial | $78 | 48 hrs | Common rail injectors not fitted to a car or light duty truck. Usually Bosch, Denso, or Delphi. Tested on Bosch EPS205 with printout and recommendations. |
| HEUI 6.0L or G2.8 | $55 | 48 hrs | Ford 6.0 F250, F350, and F450 from 2003 to 2007, some vans until 2010, Navistar VT365, VT275, and MaxxForce 5. |
| HEUI G2.9 | $65 | 48 hrs | Navistar DT466, DT570, HT570, MaxxForce DT, MaxxForce 9, MaxxForce 10, N9, and N10. |
| HEUI Square Ford 7.3 Powerstroke | $55 | 48 hrs | Ford 7.3 Powerstroke 1994 to 2002. Price applies each if testing fewer than four at a time. |
| HEUI Square Navistar And CAT | $65 | 48 hrs | Navistar DT466E, I530, DT466, DT530, HT530, and CAT 3126. Price applies each if testing fewer than four at a time. |
| CAT C7 or C9 | $85 | 48 hrs | Price applies each if testing fewer than four at a time. Results and recommendations provided after testing. |
| EUI 2 Pin And 4 Pin | $78 | 72 hrs | Injectors with a large spring driven off the engine camshaft and an electrical connection. Tested in sets of six only. |
| Cummins STC | $78 | 72 hrs | Tested in sets of six only. Results and recommendations provided after testing. |
| Pumpeduse | $125 | 72 hrs | Volkswagen and Audi unit injectors, common on Mark 4 or BEW applications. Tested in sets of six only. |
| Top Feed Gasoline | $39 | 48 hrs | Gasoline injector testing and cleaning. Additional parts are generally $5 to $10 when needed. |
| Side Feed Gasoline | $49 | 48 hrs | Gasoline injector testing and cleaning. Additional parts are generally $5 to $10 when needed. |
| GDI Gasoline | $59 | 48 hrs | Gasoline direct injector testing and cleaning. Additional parts are generally $5 to $10 when needed. |
Process
Our Service Process
Schedule Arrival
Tell us the injector application, complaint, arrival method, and expected arrival date before drop off or courier shipment.
Identify Injector Style
The injector type is confirmed so the correct diesel or gasoline test procedure and price category can be used.
Test And Report
Testing is completed, results are documented, and recommendations are provided after the data is reviewed.
Decide Next Step
You can choose repair, replacement, cleaning, or reinstallation based on the test results and recommendations.
FAQ
Service Questions
Pricing depends on injector style. Mechanical injector testing starts at $16, common rail testing starts at $65, HEUI testing ranges from $55 to $85, EUI testing starts at $78, pumpeduse testing is $125, and gasoline injector testing and cleaning starts at $39.
Most listed diesel and gasoline injector testing services are quoted at 48 hours. EUI, Cummins STC, and pumpeduse testing are listed at 72 hours. Current workload can affect timing, so contact us for current queue estimates.
Provide your name, company if applicable, email, phone number, engine or vehicle application, the complaint or reason for testing, whether the injectors will arrive by drop off or courier, and the expected date of arrival.
Yes. Results and recommendations are provided after testing. Common rail testing may include a PDF printout from the Bosch EPS205 computerized test bench where applicable.
Yes. We test and clean top feed, side feed, and GDI gasoline injectors, with listed pricing and a 48 hour standard timeframe.
